Custom, Collaborative Solutions
Skyline will help you design a multi-sign traffic control system that safely directs the flow of traffic in a variety of applications by using 2 or more signs.
Applications

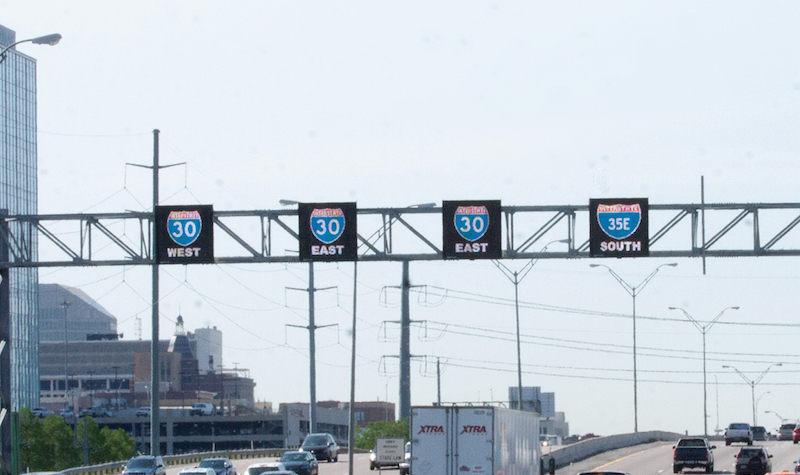

- Freeway / Interstate Lane Management MORE INFO >

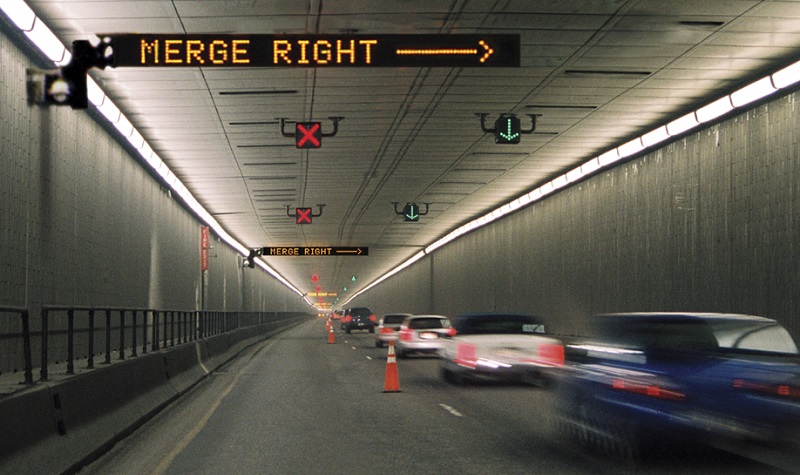

- Tunnel Lane Management MORE INFO >
- Arterial Roadways / Intersections MORE INFO >
- Airport / Railway Applications READ CASE STUDY >
Skyline’s Multi-sign Controller
- Using a single controller in the control cabinet to operate up to eight signs uses less real estate and less power
- Fewer points of failure and lower cost to operate a system of signs
- Highly customization to any application or need
- Each sign is individually IP addressable
- Native support for NTCIP and utilizes a powerful Linux-based operating system
- Monitor cabinet sensors and access display/pixel diagnostics
- Resent functionality used to restart the controller and/or/sign(s)
Manage up to eight IP addressable NTICP compliant signs in a single 19 inch rack mountable housing.
Contains firmware that monitors external and internal sensors, communication inputs, and controls the sign electronics, as directed by external control software.
Control panel includes user-friendly interface that permits single-user operation for multiple signs.
Operating temperature range of -40° to 74° C (-40° to 165° F) and meets applicable NEMA TS2 and TS4 Standards.
Remote Interface connection utilizes a 10/100 Ethernet RJ45 Jack that supports the UDP network protocol.
